High Speed 3-Axis Machining Center

Built for High Precision Mold Machining

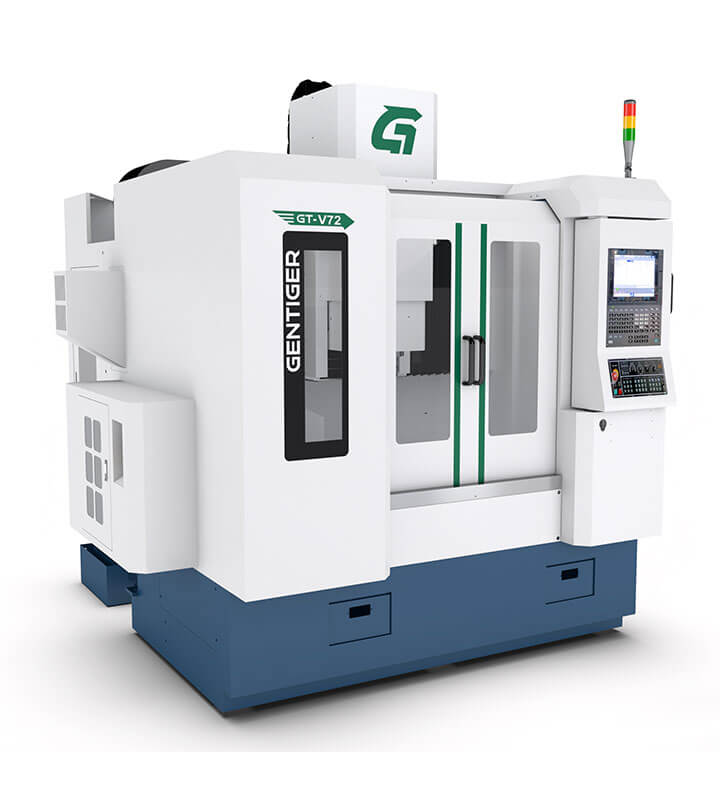

  • GT-V72 Double Column High Speed Machining Center not only has a rigid and stable structure, but also exhibits unmatched performance in high speed, high precision machining. The GT-V72 is equipped with an 18,000 rpm, BBT-40 direct drive spindle. Upon request, a HSK-A63 spindle is available. With 20 M/min. of cutting feed rate and 30 M/min. of rapid feed rate on three axes, high speed machining is easy to achieve. The Gentiger GT-V72 is a high efficiency machine that is specially designed for precise, small mold machining. Choosing the GT-V72 will keep your machining competitive.

Double Colum High Speed Structural Design / A Perfect Combination of Speed and Stability

  • The Gentiger GT-V72 is specially designed with the advanced T-shape construction to maximize rigidity. In addition, the width of the column is the same as the base. The table is independently moved on the base, and fully supported throughout the entire stroke. These features enable the machine to maintain maximum accuracy year after year.

Outstanding Rigidity

  • Regarding to its specially designed structure and optimal accuracy, the Gentiger GT-V72 makes small mold machining easy and effortless.
  • Advanced T-shape construction helps upgrade stability.
  • One-piece constructed column and beam provides higher rigidity.
  • Effortless and smooth motions fully meet high speed machining requirements.
  • X, Y, Z-axes are mounted with roller-type linear ways for high speed traverse, Extra heavy loading capability.
  • Rapid feed rates on X, Y, Z-axis: 30 M/min.
  • Cutting feed rate on X, Y, Z-axis: 20 M/min.
  • Positioning accuracy: 0.005mm/Full Stroke.
  • Repeatability accuracy: < 0.004mm/Full Stroke.
  • Cutter balance is calibrated to within G2.5.
Travel (X / Y / Z) 720 x 500 x 400 mm
Cutting Feedrate(X / Y / Z) 20 m/min
Rapid Feedrate (X / Y / Z) 30 m/min
Table Area 750 x 500 mm
Max. Spindle Speed 18,000 rpm
Spindle Type Direct Drive
Bearing Lubrication Oli-Air
Spindle Cooling Oli-Cooling
Spindle Tapper BBT-40 /HSK-A63 (Opt.)
Magazine loading capacity 16 tools
  • Above specifications are based on Siemens controller, Heidenhain, Fanuc and Mitsubishi controllers are available.
  • All specifications, design and characteristics are subject to change without prior notice.

Standard Accessories

  • Coolant tank
  • Work lamp
  • Tool box
  • Spindle air blow system
  • Chip air blow device
  • Air conditioner for electrical cabinet
  • MPG
  • M30 work and inspection light
  • Fully enclosed splash guard
  • Central control lubricator
  • Operation and maintenance manual
  • Leveling bolts and pads
  • Network function
  • Spindle heat compensation system

Optional Accessories

  • Three axes optical scales
  • Oil and lubricant separator
  • Oil mist cooling system
  • Oil mist collector
  • Auto tooling measurement
  • Auto workpiece measurment
  • Coolant through spindle
  • Coolant gun
  • Transformer
  • Graphite dust collector
